Welmoed Reservoir
A prime example is the Welmoed Estate Development project, which issituated in Blue Downs to the east od the City of Cape Town municipal area,surrounded by the Blackheath, Eersterivier suburb, and the Stellenboschfarmlands.
The development, which makes provision for approximately 8000 Breaking New Ground (BNG) housing units within an approximately 200 ha land rack, is divided into two phases, with Phase 1 further divided into three sub-phases(Phase 1A, 1B and 1C). Currently, only Phase 1A is under way, entailing the construction of 1348 BNG units, together with supporting civil and electrical engineering services, as well as bulk services.
Project Data Sheet
Year
2022
Location
Cape town, Western Cape
Client
Department of human settlements
Project Type
Civils
Scope

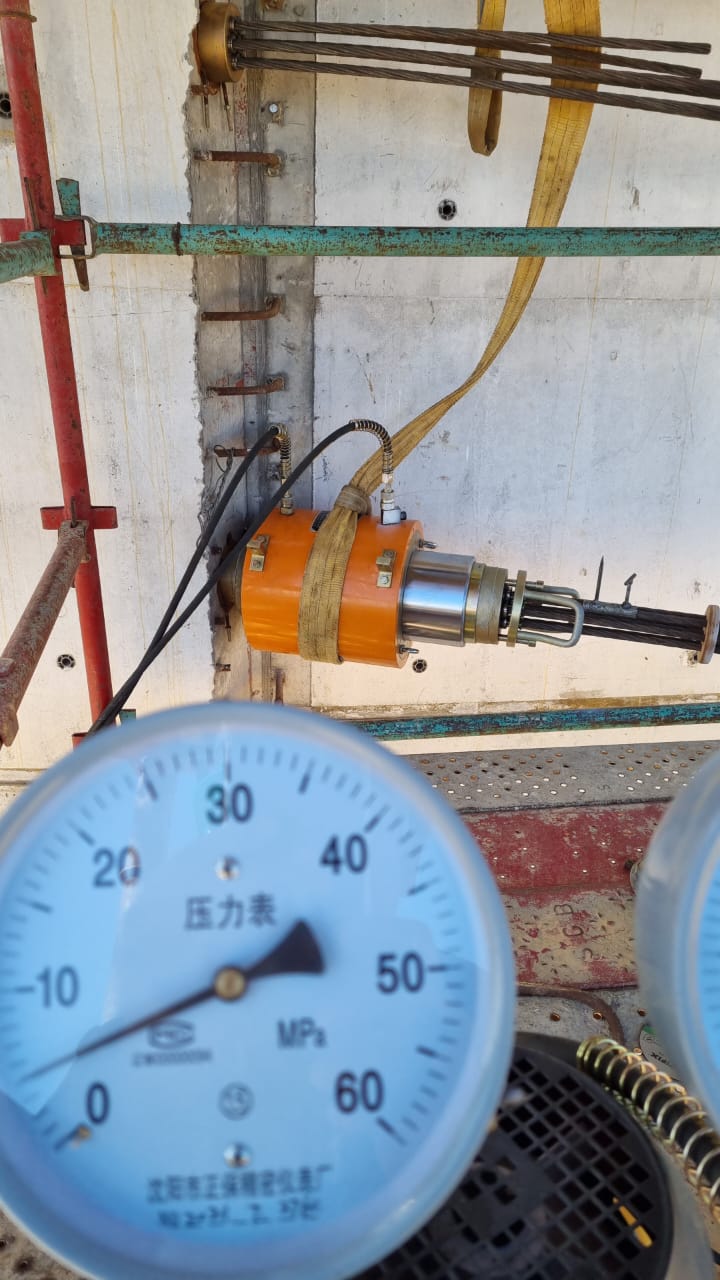

Standing at a height of 12m with 40.8m internal diameter, the Welmoed Estate developments Reservoir is a post tensioned concrete structure featuring walls with a thickness of 425mm. PTS-S were contracted for the supply and installation of the post tensioning system, which consisted of 25No rings of 7-strand post tensioned tendons, stressed at 4x buttresses. Stressing and grouting for post tensioning was completed in record time and all stressing and grout results were within the specified tolerances.
